KUS water temperature sensor - Type I - 3/8"-18NPT", 17,57 €

KUS water temperature sensor (max. 120°C) for engine cooling water indicators

This sensor main body is made from brass. It has a IP67 protection rank.

Technical data
Rated power for alarm switch: 1.2 ~ 3 Watt
Temperature alarm tolerance: +/- 3 °C
Type of alarm touch: The switch turns off when the temperature rises
Temperature response time: Minimum 3 minutes after power supply electrified

Available versions

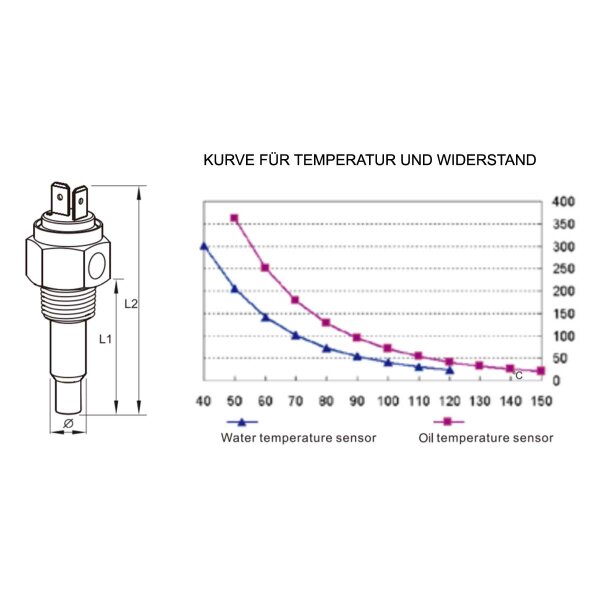

Type	Gewinde	Ø	L1	L2	Alarm
Type I	M14x1,0	7,5 mm	28,5 mm	41,0 mm	w/o Alarm
Type I	M14x1,5	7,5 mm	28,5 mm	41,0 mm	w/o Alarm
Type I	M16x1,5	7,5 mm	28,5 mm	41,0 mm	w/o Alarm
Type I	M18x1,5	7,5 mm	28,5 mm	41,0 mm	w/o Alarm
Type I	3/8"-18NPT	7,5 mm	28,5 mm	41,0 mm	w/o Alarm
Type II	M14x1,5	13 mm	28,5 mm	58,7 mm	w/o Alarm
Type II	M16x1,5	13 mm	28,5 mm	58,7 mm	w/o Alarm
Type II	3/8"-18NPT	13 mm	28,5 mm	58,7 mm	w/o Alarm
Type III	M14x1,5	10,7 mm	41,0 mm	71,5 mm	with alarm at 95°C
Type III	M16x1,5	10,7 mm	41,0 mm	71,5 mm	with alarm at 107°C
Type III	3/8"-18NT	10,7 mm	41,0 mm	71,5 mm	with alarm at 98°C
Type IV	1/8"-27NPT	8 mm	27,0 mm	51,5 mm	w/o Alarm
Type IV	1/2"-14NPT	8 mm	30,0 mm	54,0 mm	w/o Alarm
Type IV	3/8"-18NPT	8 mm	2,0 mm	46,5 mm	w/o Alarm
