KUS S5 fuel and water level sensor 700 mm

11 watch this article

64,08 €

incl. 23% VAT , plus

For this product you will receive 64.08 Reward Points

Length

Only 1 Pcs. left in stock!

Pcs.

1 Pcs. In stock

Delivery time: 6 - 8 Workdays

Order within the next 22 hours and 59 minutes and we will ship your order on 30.6.

Stock in the external warehouse 20 piece
Delivery time: 3 Working days

KUS S5 fuel and water level sensor 700 mm

64,08 €

incl. 23% VAT , plus

Pcs.

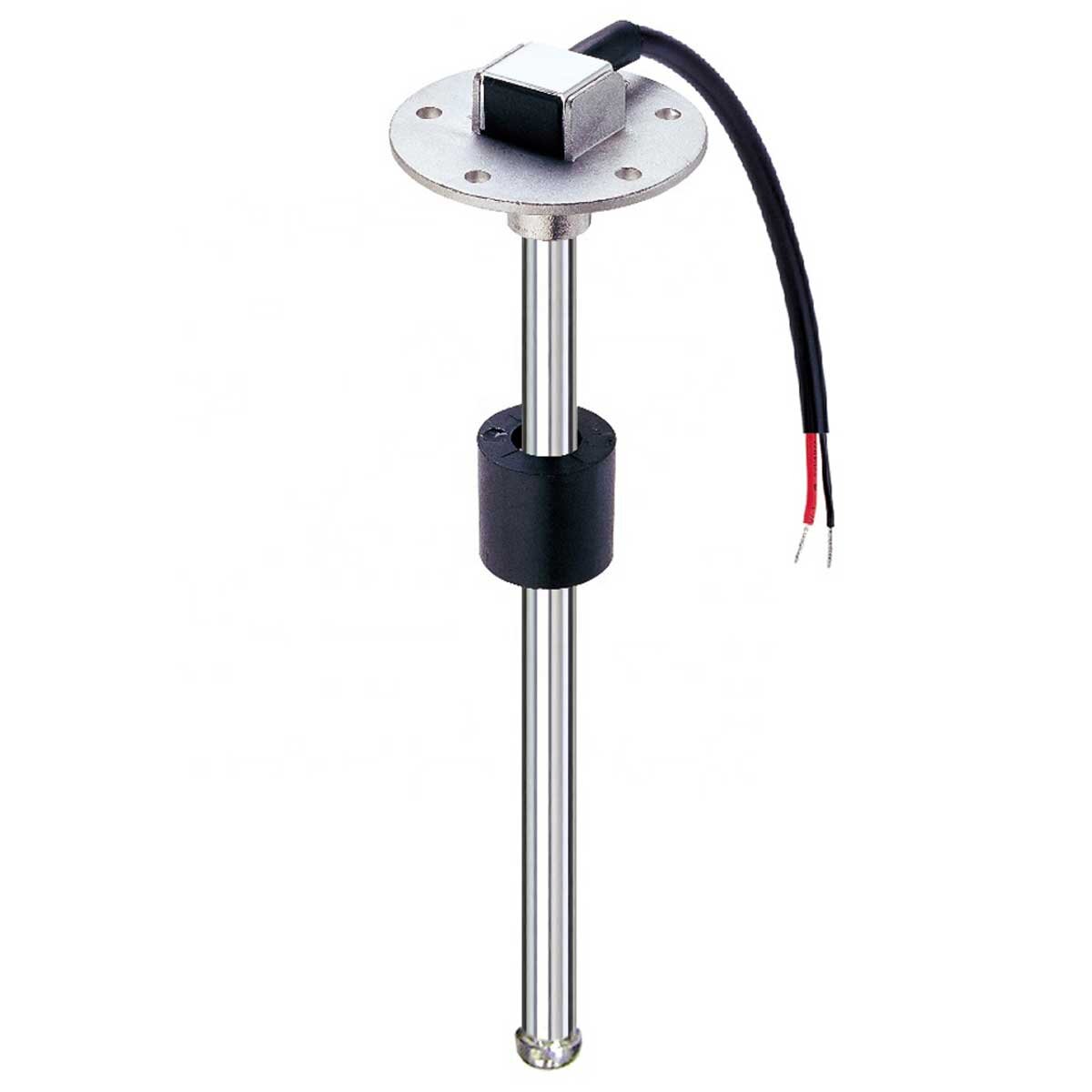

KUS level sensor S5 for fuel and water tanks

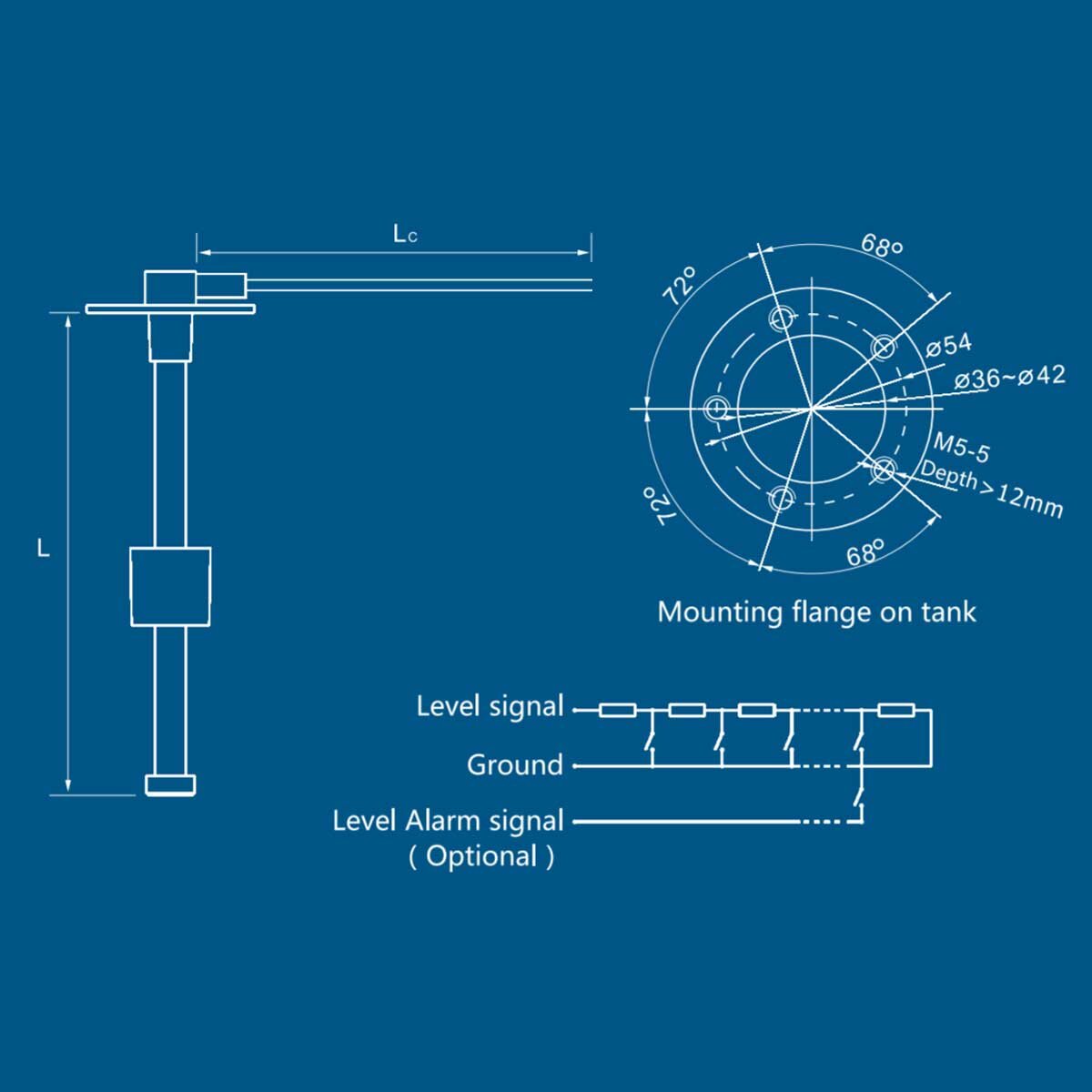

The sensor has a SAE 5-hole flange and a diameter of 55 mm. The body is made of AISI 316 stainless steel. Waterproof according to IP67
Supplied complete with seal and 5 screws. Can be used with 12 and 24 volt systems. The connection cable length is 46 cm.

Technical Data
Output signal: 0-190 Ohm (0 empty / 190 full)
Rated power: 125mW
Rated current for alarm switch: 500 mA
Operation temperature: -40°C bis +85°C
Resolution range: 21 mm
Float Diameter: 31 mm

This level sensor is available in lengths of 15 - 100 cm. (Lenghts up to 160 cm on request)
